GE Vivid E95 Ultrasound

$24.770

GE Vivid E95 Specifications:

• Infinite number of effective channels
• Minimum field-of-view range (depth): 0 – 2 cm (zoom) (probe dependent)
• Maximum field-of-view range (depth): 0 – 50 cm (probe dependent)
• Width range: 10 – 120 degrees
• Continuous dynamic receive focus/continuous dynamic receive aperture
• Continuous dynamic transmit focus
• Adjustable dynamic range, infinite upper level

Category: Tag:
Compare
Description

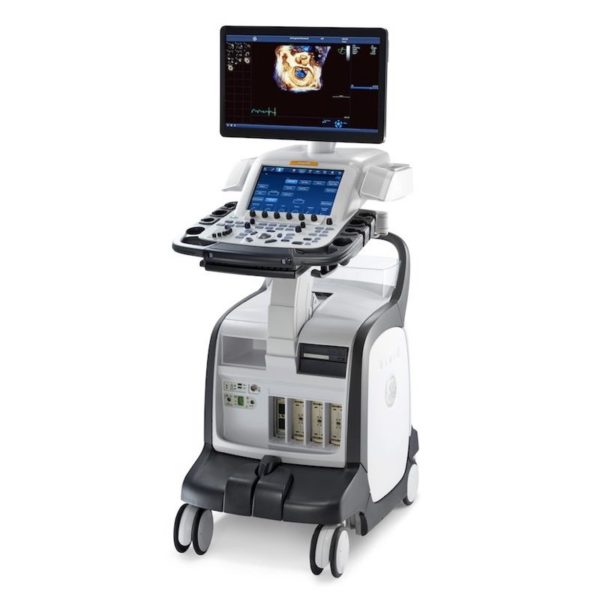

GE Vivid E95 Ultrasound

The GE Vivid E95 is the premium cardiovascular ultrasound system that takes the position of the GE Vivid E9 by integrating a new and advanced software-based image processing system called cSound, a new XDclear Matrix transducer which includes volume 4D TEE options, and advanced 4D capabilities. With more flexibly programable and powerful “cSound”, the GE Vivid E95 delivers more enhanced auto image optimization, 2D Auto EF, AFI Productivity Package, AFI Stress, and Scan Assistant Pro than those of the GE Vivid E9. This advanced system starts out at $53,000 but this price can increase depending on the introduction of higher end probes that are more expensive. However, when it comes to the quality and technological advances of this machine it’s a priceless investment.The GE Vivid E95 also achieves better ergonomics through its reduced weight, its more intuitive control panel featuring a large 12″ UHD multi-touch LCD screen, and its freely-adjustable high quality 22″ high-resolution wide screen OLED monitor. Although the GE Vivid E95 is mainly designed as a dedicated cardiovascular system, it covers a wide range of clinical applications through different types of transducers: adult cardiac, pediatric cardiac, fetal/obstetrics, abdominal (including renal, GYN/pelvic), pediatrics, small organ (including breasts, testes and thyroid), adult and neonatal cephalic, peripheral vascular, musculoskeletal conventional, urology/prostate, transesophageal, transrectal, transvaginal, and intraoperative (including vascular, thoracic/cardiac, and abdominal).



Overview

GE Vivid E95 Dimensions and Weight:

• Width: 544 mm, 21 3/4″
• Depth: 844 mm, 33 1/4″
• Height: 1230 mm – 1670 mm, 48 3/8″ – 65 3/4″ (up/down mechanism + LCD arm)
• Weight: 126 kg , 278 lbs

GE Vivid E95 Specifications:

• Infinite number of effective channels
• Minimum field-of-view range (depth): 0 – 2 cm (zoom) (probe dependent)
• Maximum field-of-view range (depth): 0 – 50 cm (probe dependent)
• Width range: 10 – 120 degrees
• Continuous dynamic receive focus/continuous dynamic receive aperture
• Continuous dynamic transmit focus
• Adjustable dynamic range, infinite upper level

GE Vivid E95 Electrical power:

• Nominal input voltage: 100-240 VAC, 50/60 Hz
• Typical power consumption: 500 W @ default cardiac preset with M5Sc
• Rated power consumption: 700 W

GE Vivid E95 Features:

• High resolution 22″ wide OLED monitor
• High resolution 12″ wide LCD touch screen
• 4 active probe ports and one CW port
• ECG port
• Integrated HDD
• Multiple USB ports (front/back)
• Integrated DVD-R multi drive (optional )
• On-board storage for B/W thermal printer
• Integrated speakers for premium sound
• Integrated locking mechanism that provides rolling lock and caster swivel lock
• Integrated cable management
• Easily accessible removable air filters for cleaning
• Front and rear handles
• Side storage trays
• Rear storage trays/baskets
• Hand rest
• Automatic Optimization
• CrossXBeam
• Speckle Reduction Imaging (SRI-HD)
• Fine Angle Steer
• Coded Harmonic Imaging
• Tissue velocity M-mode
• Continuous wave Doppler
• Tissue M-mode
• Pulsed wave Doppler
• Anatomical M-mode
• Curved anatomical M-mode
• Tissue velocity imaging
• Tissue velocity Doppler
• B-flow
• Raw Data Analysis
• Real-time automatic Doppler calcs
• Tissue Tracking Mode
• Contrast Imaging LVO Contrast

Accessories

GE Vivid E95 Peripheral Options:

• Sony Digital UP-D711 Termal Printer
• Sony Fixture Kit for Digital UP-D711 Thermal Printer
• Sony Digital UP-D25 Color Thermal Printer
• Sony Digital UP-D897 BW Thermal Printer
• Mitsubishi P93W/E Thermal Printer
• Mitsubishi P95DW Thermal Printer
• USB B/W video printer with control from system
• External USB printer connection
• Direct streaming DVR (Sony® HVO-550MD)
• 16 GB encrypted memory stick
• 2 TB USB hard drive (2 x 2 TB SATA II hard drives mirrored for data redundancy)
• Three-pedal configurable footswitch
• DVI-I
• Ethernet – 10 Mbps, 100 Mbps, 1 Gbps
• Multiple USB 2.0 ports
• RS-DLP Probe Adapter for TEE Probe
• Integrated gel holders
• User-configurable probe holders
• ECG + AHA/IEC® Cables

GE Vivid E95 Supplies:

• Aquasonic ultrasound gel
• Sono ultrasound wipes
• Sony UPP-110HG thermal printing paper
• Sony UPC-21L color thermal printing pack
• Mitsubishi KP95HG thermal roll paper (new)
• Mitsubishi KP65HM-CE High density thermal paper

GE Vivid E95 ports:

• DVI-I
• Ethernet – 10 Mbps, 100 Mbps, 1 Gbps
• Multiple USB 2.0 ports

GE Vivid E95 image storage:

• 4D virtual store
• On-board database of patient information from past exams
• Storage formats:

– DICOM®-compressed or uncompressed, single/multi-frame, with/without raw data, storage via clipboard and/or seamlessly directly to destination device

– Transfer/ “Save As” JPEG, MPEG, AVI, DICOM, Raw DICOM and VolDicom formats

• Storage devices:

– USB memory stick: 16 GB

– CD-RW storage: 700 MB (DVD option required)

– DVD storage: -R (4.7 GB) (DVD option required)

– Hard drive image storage: 0.5 TB

• Compare old images with current exam
• Reload of archived data sets
• Activation control of USB devices

Options

GE Vivid E95 Options:

• Tissue synchronization imaging
• Intima Media Thickness (IMT)
• CW Doppler
• Strain/Strain Rate Mode (option, enabled by Advanced QScan)
• Tissue Synchronization Imaging Mode (option, enabled by Advanced QScan)
• 2D stress
• Auto EF
• Automated Function Imaging (AFI)
• Automated Ejection-Fraction Calculation (AutoEF)
• AFI Stress
• Contrast Low MI
• Mitral Valve Assessment
• Z-Scores
• Quantitative Analysis Package (Q-Analysis)
• EchoPAC™/Patient Archive
• Insite™ Express Connection (ExC) Enables Remote Service and Training 4D Features
• 4D full volume scanning – single-beat and multi-beat
• 4D stress
• 4D Auto AVQ: Automated 4D aortic annulus quantification (dimension, area, circumference)
• 4D Auto LVQ: Automated 4D left ventricular quantification (volume, ejection fraction)
• 4D strain
• 4D LV mass
• 4V enable (required to run 4V-D probe)
• HDlive
• MV assessment (Tomtec)
• RV volume (Tomtec)
• Polarized stereo vision



Please contact us want to know more information.
And Get the deal from us…
