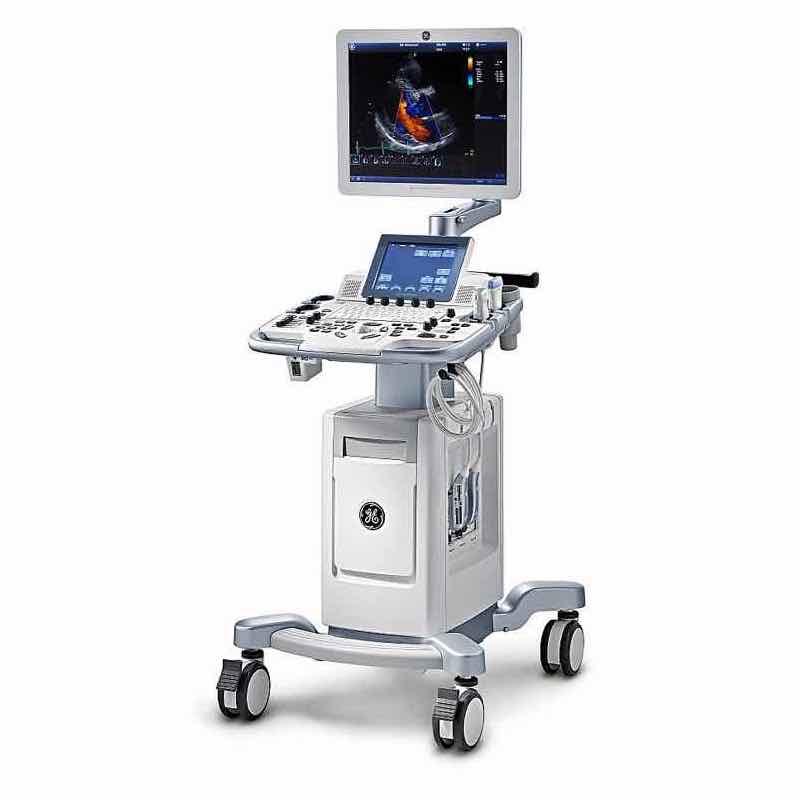

GE Vivid T8 Ultrasound

$11.540

Dimensions and Weight
• Width:
– Keyboard: 500 mm (19.7 in)
– Caster: 720 mm (28.3 in)
• Depth:
– Maximum: 810 mm (31.9 in)
– Caster: 800 mm (31.5 in)
• Height:
– Maximum: 1495 mm (58.9 in)
– Minimum: 1410 mm (55.5 in)
• Weight: 58 kg, 128 lbs

Category: Tag:
Compare
Description

The GE Vivid T8 Ultrasound is a affordable and truly reliable economy grade of multipurpose Cardiovascular System designed for reliability in busy environments for cardiac and shared service imaging, with the additional capabilities of 2D, adult, pediatric, fetal/obstetrics, vascular/peripheral vascular, urological, abdominal, transcranial, mall parts, musculoskeletal, and tansesophageal applications.

GE Vivid T8 FAQ:

Dimensions and Weight
• Width:
– Keyboard: 500 mm (19.7 in)
– Caster: 720 mm (28.3 in)
• Depth:
– Maximum: 810 mm (31.9 in)
– Caster: 800 mm (31.5 in)
• Height:
– Maximum: 1495 mm (58.9 in)
– Minimum: 1410 mm (55.5 in)
• Weight: 58 kg, 128 lbs

GE Vivid T8 Specifications:

• Digital beamformer with up to 193,536 effective digital channels
• Displayed imaging depth: 0 – 30 cm
(probe dependent)
• Minimum depth of field: 0 – 2 cm
(probe dependent)
• Maximum depth of field: 0 – 33 cm
(probe dependent)
• Continuous dynamic receive
focus/continuous dynamic
receive aperture
• Adjustable dynamic range
up to 120 dB

GE Vivid T8 Electrical power:

• Nominal input voltage:
100-240 VAC, frequency 50/60 Hz
• Power consumption maximum:
400 VA with peripherals

Probes
GE Vivid T8 Probes/Transducers:

Convex probe
4C-RS

Endo Mirovex Probe
E8C-RS

Micro Convex Probe
8C-RS

Linear Probe
L6-12-RS [6.0-13.0Mhz]

Cardiac Sector Probe
3Sc-RS [1.3-4.0Mhz]
6S-RS [2.7-8.0Mhz]

Doppler Pencil Probes
2D [2.0Mhz]

TEE Probe
6Tc-RS [2.9-8.0Mhz]

Features
GE Vivid T8 Features:
• 19″ high-resolution LCD
• 8.4″ high-resolution, color, touch screen
• Four active probe ports
• ECG port
• Integrated HDD (500G)
• Multiple USB ports
• Integrated locking mechanism that
provides rolling lock and caster
swivel lock
• Integrated cable management
• Removable air filters
• Front and rear handles
• One integrated gel holder
• Six probe holders
(two optional, four standard)
• Color M-mode
• Tissue velocity M-mode
• Tissue M-mode
• Anatomical M-mode
• Tissue velocity imaging
• Tissue Doppler imaging
• Spatial Compound imaging
• Image archive
• Z scores
• Fetal trending
• Renal calculations
• On-board report package

GE Vivid T8 Ultrasound

Accessories
GE Vivid T8 Peripheral Options:
• Sony Digital UP-D711 Termal Printer
• Sony Fixture Kit for Digital UP-D711 Thermal Printer
• Sony Digital UP-D25 Color Thermal Printer
• Sony Digital UP-D897 BW Thermal Printer
• Mitsubishi P93W/E Thermal Printer
• Mitsubishi P95DW Thermal Printer
• Footswitch MKF2-MED USB GP26
• USB ECG Kits (AHA/IEC)

GE Vivid T8 Supplies:
• Aquasonic ultrasound gel
• Sono ultrasound wipes
• Console Protective Cover
• Sony UPP-110HG thermal printing paper
• Sony UPC-21L color thermal printing pack
• Mitsubishi KP95HG thermal roll paper (new)
• Mitsubishi KP65HM-CE High density thermal paper
• External USB printer connection

GE Vivid T8 ports:
• Composite color video output
• S-Video output
• VGA output (SXGA resolution)
• Audio stereo output
• 100BASE-TX ethernet (RJ45)
• USB (3x in rear, 3 under keyboard)
• AC Power Input
• Probe connectors

GE Vivid T8 image storage:
• Storage formats:
– DICOM – Compressed/uncompressed,
single/multi-frame, with/without raw data
– “Save As” JPEG, MPEG, AVI
• Storage devices:
– USB memory stick: 8 GB
– CD-RW storage: 700 MB
– DVD storage: -R (4.7 GB)
– Hard drive storage: 500 GB

Options
GE Vivid T8 Options:
• Curved anatomical M-mode
• Blood flow imaging
• Blood flow imaging with Angio
• B-flow
• IMT
• Tissue tracking
• Tissue synchronization imaging
• Strain imaging
• Strain rate imaging
• AFI Automated Function Imaging
• Auto EF
• Q-Analysis
• Smart Stress
• Coded phase inversion LVO contrast
• LOGIQView
• Scan Assist
• DICOM* connectivity
• MPEGVue
• Flexible arm
• Extra probe holder
• Paper tray
• Probe cable tray
• DVD-RW drive
• On-board storage for thermal printer, integrated speakers

Applications
GE Vivid T8 Applications:
• Abdominal
• OB/GYN
• Small Parts
• MSK
• TCD
• Vascular/Peripheral Vascular
• Urological
• Pediatric
• Cardiac(Adult & Pediatric)
• TEE, & Stress Echo



Please contact us want to know more information.
