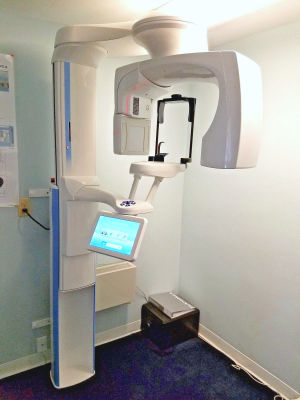

Planmeca ProMax 3D Plus

Planmeca ProMax 3D Plus Used A new member of the ProMax 3D family A true all-in-one unit. Planmeca is proud to introduce a new member to the superior Planmeca ProMax 3D family Planmeca ProMax 3D Plus Volume sizes from r40×50 mm to Ř160×90 mm A true all-in-one unit: CBCT, 3D photo, 3D model scanning, panoramic and cephalometric imaging, true extraoral bitewings Unique 3D combination

Planmeca ProMax® 3D Plus offers the user a wide variety of volume sizes for applications requiring 3D imaging. The volume sizes range from 34×42 mm to 140×90 mm. This wide selection allows optimising the imaging area according to a specific diagnostic task – always complying with the best practices of dentistry and the ALARA (as low as reasonably achievable) principle to minimise radiation.

The new unit also offers a unique combination of three types of 3D data. The user can acquire a patient CBCT image, 3D face photo and 3D model scan (impression or plaster cast scan), which are combined in one software suite. A virtual patient is created for different clinical needs. Planmeca is the first to introduce this type of a concept, available for all Planmeca’s 3D units.

Additionally, Planmeca ProMax 3D Plus introduces a new kind of panoramic imaging. The standard panoramic imaging program is optimised to expose only the tooth area, which reduces patient dose. Optionally, the temporomandibular joints can be captured with a program in which the TMJ imaging angles are adjusted like in regular TMJ programs. As a true all-in-one unit, Planmeca ProMax 3D Plus also offers cephalometric imaging either with a scanning or one-shot type cephalostat.

Planmeca ProMax 3D Plus

– Volume sizes from Ř40×50 mm to Ř160×90 mm
– A true all-in-one unit: CBCT, 3D photo, 3D model scanning, panoramic and cephalometric imaging, true extraoral bitewings

Specifications:
Technical data

– Anode voltage 54–90 kV
– Anode current 1–14 mA
– Focal spot 0.5 mm, fixed anode
– Image detector Flat panel
– Image acquisition 200/360 degree rotation
– Scan time 2–33 s
– Reconstruction time 2–30 s

Key features
Advanced technology:

– Ideal resolutions and patient dose levels that always comply with the ALARA (As Low As Reasonably Achievable) principle
– Optimal volume size and location for every clinical need
– Special imaging protocols for dental and ENT applications

Effortless use:

– Effortless patient positioning and unmatched comfort
– True all-in-one X-ray units not only for 3D imaging, but 2D panoramic and cephalometric imaging as well
– Easy to use for a smooth workflow
– Planmeca Romexis® software
– Mac OS and Windows support

Ease of operation:

Our Planmeca ProMax 3D Plus units are known across the world for incredible ease of use and exceptional patient comfort.
A relaxed patient means a smooth imaging workflow and the best quality images.
User-friendly control panel

– Clear and straightforward interface guides users smoothly through their work
– Pre-programmed sites and exposure values for different image types and targets saves time and allows full focus on patients

Open patient positioning

– Effortless positioning with open-face architecture
– Unrestricted view of patients
– Calm experience for patients – without claustrophobic feelings
– Fine adjustment using positioning lasers and a joystick
– Correct positioning verified with a scout image
– Easy wheelchair accommodation with side-entry access
