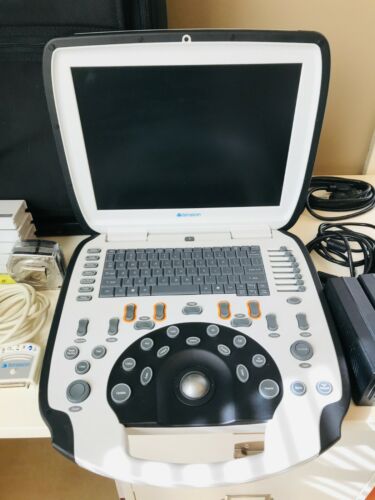

Terason Usmart 3300 Ultrasound System

Terason Usmart 3300 Ultrasound System

Elite Performance in a Shared-Service Ultrasound

The Terason uSmart 3300 brings together innovative Smart Technology with high-resolution imaging. Coupled with quick and easy start-up, this makes this ultrasound ideal for:

• Anesthesia
• Cardiology
• Critical Care
• Emergency Medicine
• Musculoskeltal
• OB/GYN
• Vascular
• And others

With the Terason Usmart 3300 ultrasound system, the Terason brand of ultrasound machines introduced an entirely new hardware platform based on an entirely new design, ergonomics, and efficient use.

Moving away from the MacBook Pro, the usSmart 3300 ultrasound system features a compact and impact-resistant laptop “clamshell” design with a powerful Intel i7 processor and 8GB of RAM. Users can view images on the 15-inch polarized anti-glare LCD display and, with the 3300’s 1TB hard drive and processing power, the Terason uSmart 3300 performs similarly to a powerful laptop computer

Features:
– SuperHarmonic Imaging Power
– 1 TB SSD
– CW Doppler, Stress Echo and EKG
– Enhanced Needle Visualization (ENV)
– Reliable and Responsive High-Quality Buttons
– Durable, Impact-Resistant Design
– Intima-Media Thickness (IMT)

Advanced computer technology and open architecture to streamline workflow and easily store data.

– 1TB SSD
– Integrated CD/DVD+RW
– Easy integration with EMR
– Wireless networking available
– Easily transfer DICOM images to PACS
– Open architecture for file management and 3rd party software
– DICOM Structured Reporting (DICOM SR)

Imaging Features:
– Smart Resolution Imaging
– Enhanced Needle Visualization (ENV)
– TeraVisionTM II
– OmniBeamTM
– Dynamic Depth Resolution (DDRTM)
– TeraZoomTM
– Trapezoid
– Color/2D
– Triplex/Duplex (Simultaneous/Non-Simultaneous)
– Split Screen
– Full Screen
– Auto Optimization
– 2D Beam Steering
– Application-Specific Presets
– TeraScapeTM
– Post Processing
– Intima-Media Thickness (IMT)

Ergonomics:
– Smart Console Design
– Optical Trackball (Full-Size)
– Ergonomic Key Positioning
– Reliable and Responsive High-Quality Controls
– Backlit High-Resolution LCD
– Backlit Keyboard
– Comfort Handle
– Intuitive User Interface
– Tilt Feet

Workflow:
– Color Change Controls for Active Mode
– Prospective and Retrospective Capture
– Cine Loop Trim Capability
– Advanced Measurement Tools
– Configurable Report Builder
– Store, Print, Media Export
– JPEG/AVI/BMP/PDF Media Export
– DICOM 3.0
– DICOM Modality Worklist
– DICOM Storage
– DICOM SR

Specifications:
maging Modes:
– 2D (B-Mode)
– M-Mode
– Anatomical M-Mode
– Color Doppler
– Pulsed Wave Doppler
– Power Doppler
– Directional Power Doppler
– Continuous Wave Doppler
– Tissue Doppler
– Tissue Harmonic Imaging with SuperHarmonicsTM

System Features:
– 1 TB SSD
– 802.11 b/g/n Wireless Network, BT 4.0
– Processor: 2.5 GHz, Intel® CoreTM i7
– 8G RAM DDR3 Onboard Memory
– 15″ Backlit Polarized Anti-Glare LCD, Ultra-Wide Viewing Angle
– Removable Lithium Ion Battery
– Imaging Channels: 256
– Dynamic Range: 200 dB
– Video Output: 1024 x 768
– Built-In CD/DVD+RW Drive
– Built-In Camera
– Dual Speakers with Subwoofer
– 4 USB Ports
– Gb Ethernet Port
– 2 HDMI Ports
– DC Input
– Headphone Jack
– Microphone Jack
– Kensington Security Slot
– ECG and Auxiliary Ports
– uConnect® Remote Capabilities
– Windows® 10 Operating System
– Cold Boot-Up Time: < 55 Seconds

Measurement Packages:
– Cardiology
– OB
– Vascular

Physical System Specifications:
– System Height: 3.5″/ 89 mm
– System Depth: 15.6″/ 396 mm
– System Width: 15.3″/ 389 mm
– Weight: 14.8 lb / 6.7 kg

Cart Design and Ergonomics:
– Sleek Body Style
– Weight: 85 lb / 38.5 kg
– Mobile Design
– 4-Wheel Steering for Excellent Mobility
– 4 Locking Wheels
– 3 Transducer Holders
– Removable and Washable Gel Holder
– On-Cart Storage Basket
– Transducer Connector Holders
– Cable Management
– OEM Printer Bay
– Multi-Probe Connector Kit (Optional)

Transducers
– Broadband and multifrequency
– Linear Array, Curved Array, and Phased Array

Transducers / Probes:
– Linear Hockey Stick 16-7 MHz
– Linear Array 15-4 MHz
– Linear Array 8-2 MHz
– Curved Array 5-2 MHz
– Endocavity 8-4 MHz
– Phased Array 4-2 MHz
– Pedoff

Please contact us want to know more information.
And Get the deal from us…
