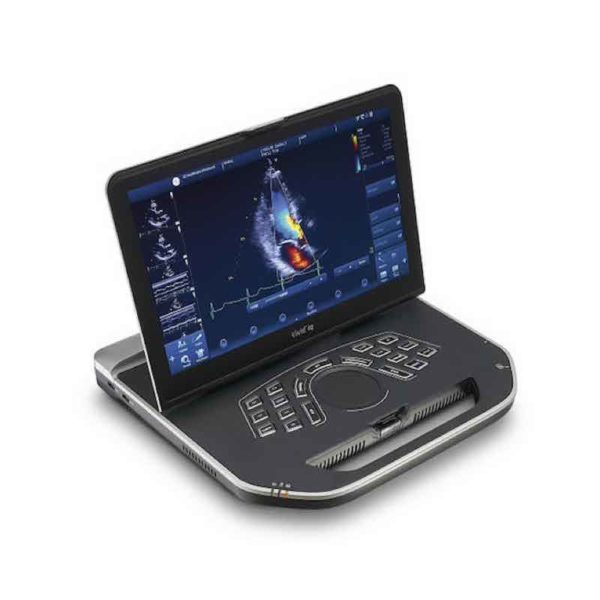

GE Vivid iq Ultrasound

The GE Vivid iq Ultrasound is the successor to GE’s very popular advanced portable cardiovascular ultrasound machines, the GE Vivid i and the GE Vivid q. Vivid iq is a completely redesigned product aimed at premium cardiovascular imaging, and is also a shared service ultrasound machine for OB/GYN, Small Parts, Vascular, and Abdominal imaging.

The design of the used GE Vivid iq uses a touchscreen interface that operates similar to that of a tablet or touchscreen PC. The closed surface of the user interface makes it easy to clean and disinfect. It is also 10% lighter than the Vivid q, weighing just under 10lbs.
As a premium portable cardiovascular ultrasound machine, the Vivid iq has advanced quantification tools such as Tissue Velocity Imaging, Tissue Tracking, Tissue Synchronization, Strain Rate, AutoEF, AFI, AutoIMT, and RAW data.
The Vivid iq has 4D TEE and ICE transducer capabilities, a rare feature on portable ultrasound machines.

Overview

GE Vivid iq Dimensions and Weight:
• Height: 64 mm (2.5″)
• Width: 390 mm, (15.35″)
• Depth: 362 mm (14.25″)
• Weight with battery: 5.2 kg (11.5 lbs)

GE Vivid iq Specifications:
• Digital beamformer with up to 974,026 effective digital channels
• Minimum field-of-view range (depth): 1 cm (probe dependent)
• Maximum field-of-view range (depth): 33 cm (probe dependent)
• Width range: 10° – 168° (probe dependent)
• Continuous dynamic receive focus/continuous dynamic receive aperture
• Adjustable dynamic range, infinite upper level

GE Vivid iq Electrical power:
• Nominal input voltage: 100-240 VAC, 50/60 Hz
• Rated power consumption: 500 VA

Probes

GE Vivid iq Probes/Transducers:
Cardiac Sector Probe
3Sc-RS [1.3 – 4.0MHz]
6S-RS [2.0 – 7.0MHz]
12S-RS [4.5 – 12.0MHz]

Linear Probe
9L-RS [2.4 – 10.0MHz]
12L-RS [4.0 – 13.0MHz]

Convex Probe
4C-RS [1.5 – 5.0MHz]

Micro Convex Probe
8C-RS [3.5 – 10.0MHz]

Endo Cavity Probe
E8Cs-RS [3.5 – 10.0MHz]

Non-imaging Doppler Probe
P2D [2 MHz]

Audult TEE Probe
6Tc-RS [3.0 – 8.0MHz]

Pediatric TEE Probe
9T-RS [4.0 – 10.0MHz]

Features
GE Vivid iq Features:
• Tissue velocity M-mode
• Continuous wave Doppler
• Tissue M-mode
• Pulsed wave Doppler
• Anatomical M-mode
• Tissue velocity imaging
• Tissue tracking
• Tissue velocity Doppler
• Blood flow imaging
• B-flow
• Virtual convex
• Virtual apex
• Coded phase inversion
• Compound imaging

Accessories
GE Vivid iq Peripheral Options:
• Sony Digital UP-D711 Termal Printer
• Sony Fixture Kit for Digital UP-D711 Thermal Printer
• Sony Digital UP-D25 Color Thermal Printer
• Sony Digital UP-D897 BW Thermal Printer
• Mitsubishi P93W/E Thermal Printer
• Mitsubishi P95DW Thermal Printer
• DVDRW
• Eight GB memory stick
• One TB USB hard drive
• USB interface (5)
• HDMI cable
• Three-pedal configurable footswitch
• Rolling bag
• ECG + AHA/IEC® Cables

GE Vivid iq Supplies:
• Aquasonic ultrasound gel
• Sono ultrasound wipes
• Sony UPP-110HG thermal printing paper
• Sony UPC-21L color thermal printing pack
• Mitsubishi KP95HG thermal roll paper (new)
• Mitsubishi KP65HM-CE High density thermal paper

GE Vivid iq Console ports:
• HDMI interface
• Ethernet – 10 Mbps, 100 Mbps, 1 Gbps
• Multiple USB 2.0 ports

GE Vivid iq Cart Design:
• Three USB ports
• Six probe holders
• Four probe cable hooks
• Charge box (optional ) – to charge up to three batteries and to scan more than 180 min with four fully charged batteries
• Multi-probe box (optional ) – three RS, one DLP to support 6VT-D

GE Vivid iq image storage:
• On-board database of patient information from past exams

• Storage formats:
– DICOM®-compressed or uncompressed, single/multi-frame, with/without raw data, storage via clipboard and/or seamlessly directly to destination device
– Transfer/“Save As” JPEG, MPEG, AVI formats

• Storage devices (optional ) :
– USB memory stick: eight GB
– CD-RW storage: 700 MB (DVD option required)
– DVD storage: -RW (4.7 GB)
– Hard drive image storage: one TB
• Compare previous images with current exam
• Reload of archived data sets

Options
GE Vivid iq Options:
• Tissue synchronization imaging
• Intima Media Thickness (IMT)
• CW Doppler
• Strain/Strain Rate Mode (option, enabled by Advanced QScan)
• Tissue Synchronization Imaging Mode (option, enabled by Advanced QScan)
• B-flow
• 2D stress
• Auto EF
• Automated Ejection-Fraction Calculation (AutoEF)
• Z-Scores
• Quantitative Analysis Package (Q-Analysis)
• EchoPAC™/Patient Archive
• Insite™ Express Connection (ExC) Enables Remote Service and Training
Applications
GE Vivid iq Applications:

• Cardiac
• Transesophageal
• Peripheral vascular
• Fetal/OB
• Abdominal adults
• Pediatric
• Small organ
• Neonatal cephalic
• Adult cephalic
• Musculoskeletal conventional
• Musculoskeletal superficial
• Transcranial
• Transrectal
• Transvaginal

Please contact us want to know more information.
And Get the deal from us…
